Submersible Pumps

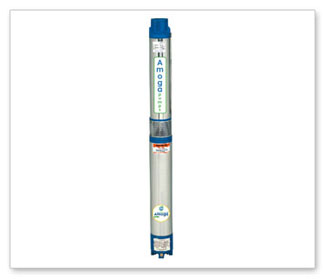

100mm (4") borewell Submersible Pumpsets

About the Product

CHERAN AGRO TECH CS100, CG100 and Premium Models 100mm Borewell Submerisble pumpsets made with quality raw material, unique design to ensure best in-class performance with lowest operating voltage, Low cost and Trouble free maintenance for years. Matchless and unique design of bowl, impeller and diffuser put together construct the pump most energy efficient. Highly sophisticated engineering and State of the art manufacturing process results the world class quality, consistently.

Cenrtrifugal Pump
Features

Specially designed Thrust Bearings to withstand high axial thrust loads.

Water Cooled rewindable, easily dismandle & repaired.

Designed for Wide Voltage operation.

Impellers high quality Poly propylene Impeller and Diffuser.

Stainless Steel 410 Sleeve and Shafts.

Best Operating Efficiency and more durability.

Suction and NRV are of C.I. FG - 220 Grade

Applications

Sprinkler Systems

Pressure boosting units.

Industrial and rural Water Supply.

Irrigation

Fountains and Gardens.

Specifications

Power :

0.75 HP to 7.5 HP (1 ph & 3 ph)

Speed :

2880 rpm

Discharge range :

12 lpm - 600 lpm

Head range :

7 m - 400 m

Delivery Pipe Size (mm) :

32, 40 & 50
