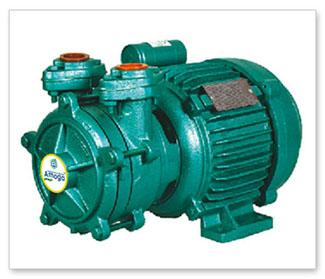

Slow Speed Self Priming Monoblock Pumps

About the Product

CHERAN AGRO TECH Centrifugal Regenerative Selfpriming pumps are with inbuilt check valve on the suction side and there is no need for foot valve. Pumps are powered by a totally enclosed fan cooled (TEFC) and Screen Protected Drip Proof (SPDP), AC induction four pole motors suitable for continuous duty. Construction of motor frame and usage of quality materials result in high performance and low temperature raise, thereby increasing the life cycle of the motor.

150 mm Borewell Submersible Pumpset in Coimbatore

Features

Double sealed ball bearing.

Specially designed for wide voltage fluctuations.

Powder coated multi-color stator body.

Good suction lift characteristics

Accurate function of centrifugal governor & switch ensures the longer life of the motor

Specially designed mesh is provided in pump to avoid foreign particles

Special graded casting used in pump portion to prevent the wear & tear

High tensile brass impeller is used to increase the
life of pump

Applications

Civil Applications.

Domestic.

Pressure Boosting.

Small Garden.

Specifications

Power :	0.5 HP to 1.0 HP
Speed :	1440 rpm
Discharge range :	20 lpm – 60 lpm
Head range :	6 m – 36 m
Delivery Pipe Size (mm) :	25 x 25
