Submersible Pumps

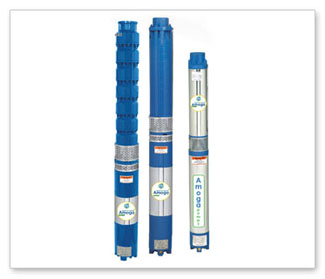

150mm (6") borewell Submersible Pumpsets

About the Product

CHERAN AGRO TECH Standard and Premium Models 150mm Borewell Submerisble pumpsets are powered by water filled, rewindable submersible motor suitable for continuous duty. The stator is wound with special water proof synthetic film insulated copper winding wires and made up of low watt loss silicon steel laminations assembled under pressure and rigidly locked in stainless steel stator shell. Standard and Premium design in all motor ensures rigid construction. Optimal design of impellers and diffusers offers best possible hydraulic efficiency. This series guarantees long life with energy-efficient performance.

Features

Best Operating Efficiency and more durability.

Specially designed thrust bearing to withstand high
axial load

Standard and Premium design motor ensures rigid construction

Smooth surface finish results friction free flow of fluid

Designed for wide voltage applications

SS grade stainless steel stage Impellers and Cast Iron Casings radial flow series

SS 41 0 impeller and Cast iron casing available in mixed flow series

Available SS 41 0 impeller and SS casing available in Radial flow series

High operating efficiency and consistent performance ensures low operation cost

Motor is designed with higher cooling effect.

Applications

Agriculture

Irrigation

Gardens

Civil & Industrial water supply

Rural water supply

Fire ﬁghting

Pressure boosting

Specifications

Power :	3.0 HP to 25 HP
Speed :	2880 rpm
Discharge range :	40 lpm - 1600 lpm
Head range :	9 m - 400 m
Delivery Pipe Size (mm) :	50, 60 & 80
