About the Product

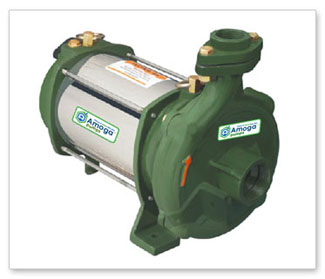

CHERAN AGRO TECH Horizontal Openwell Submersible Pumpsets are ideally suitable for Openwell / Tanks where a wide fluctuation of water level occur. This works under water and rest at the bottom of the well or tank. Hence suction and priming problem will not arise. The optimal design of impeller and diffusers enables the best possible hydraulic efficiency.

Features

maintenance free performance even in very
low voltage - 180V-240V.

Specially designed Hi- Bolt is provided for easy installation.

High Operating Efficiency.

Easy to dismantle and repair.

100% pure EC Grade copper employed to make winding wire, dual coated with insulation Cat-B.

Stamping: Silicon and Low Carbon.

Base, Housing Bracket, Casing C.I. FG-220Grade.

No Suction and Priming Problem.

Applications

Irrigation

Gardens

Industrial

Rural water supply

Specifications

Power :	3.0 HP to 60.0 HP
Speed :	2880 rpm
Discharge range :	20 lpm – 225 lpm
Head range :	5 m - 35 m
Delivery Pipe Size (mm) :	25, 32, 40 & 50
