Products

Open well Pumps

Horizontal Open well Submersible Pumps

About the Product

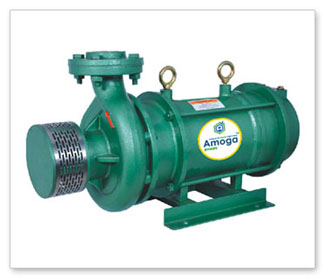

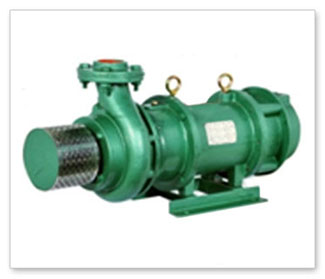

CHERAN AGRO TECH Standard and Premium models Horizontal Openwell Submersible Pumps are ideally suitable for open wells or tanks where a wide fluctuation of water level occur. This work under water and rest at the bottom of the well. Prime mover is rewindable, water-cooled motor. Motor sealing is made by polymers, ‘O’ rings, Oil seals and sand guard to avoid ingress of well water/salt into the motor. This series guarantees long life with energy-efficient performance.

Features

Motor is designed with higher cooling effect ensures the longer life of the motor.

Dynamically balanced rotating parts ensure minimum vibration and longer life.

Designed for wide voltage fluctuations.

Less maintenance due to safe designs & high precise work.

Motor Body, Base, Housing Bracket, Casing and Impellers C.I. FG-220 Grade.

Stainless Steel 410 grade motor shaft.

Pure EC Grade copper winding wire, Poly wrapped insulation Cat-B.

CRNO Stator and Rotor Stapings.

Thrust assembly Stainless Steel and Carbon pad.

Quality LTB - 4 Housing Bush.

Sand Proof design of mechanical seal rings and Sand Guards protection.

High Operating Efficiency.

Applications

Agriculture

Domestic

Irrigation

Gardens

Industrial

Rural water supply

Specifications

Power :	3.0 HP to 60.0 HP
Speed :	2880 rpm
Discharge range :	5000 lpm
Head range :	Upto 160 m
Delivery Pipe Size (mm) :	50, 65, 75 & 100
