About the Product

CHERAN AGRO TECH Centrifugal Monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor.

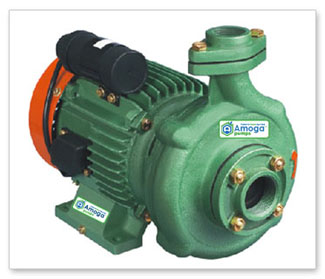

Self Priming Monoblock pump
Features

Specially designed for wide voltage operation.

Single Phase with running Capacitor.

Good suction lift characteristics.

Dynamically balanced rotating parts including rotor & impeller ensures minimum vibration & longer life.

Easy installation and easy Servicing.

High operating efficiency resulting in lower
power consumption.

Back pull-out design for easy servicing & repair.

Applications

Domestic

Gardens.

Industry.

Irrigation.

Farms.

Civil Applications

Specifications

Power :

0.5 HP to 2.0 HP

Speed :

2880 rpm

Discharge range :

27 lpm – 300 lpm

Head range :

6 m - 35 m

Suction lift with Self Priming Capacity :

7 m with foot valve

Delivery Pipe Size(mm):

25, 32, 40, 50 & 65
