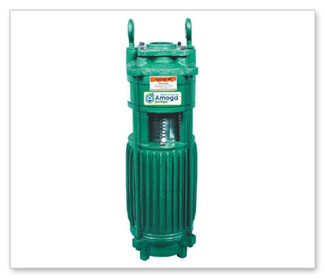

Vertical Open well Submersible Pumps

About the Product

CHERAN AGRO TECH Standard and Premium models Horizontal Openwell Submersible Pumps are ideally suitable for open wells or tanks where a wide fluctuation of water level occur. This work under water and rest at the bottom of the well. Prime mover is rewindable, water-cooled motor. This type of pumps used for higher water flow areas.

Features

Motor is designed with higher cooling effect ensures the
longer life of the motor.

Dynamically balanced rotating parts ensure minimum
vibration and longer life.

Designed for wide voltage fluctuations.

Less maintenance due to safe designs & high precise work.

Motor Body, Base, Housing Bracket, Casing and
Impellers C.I. FG - 220 Grade.

Stainless Steel 410 grade motor shaft.

Pure EC Grade copper winding wire, Poly wrapped insulation Cat-B.

CRNO Stator and Rotor Stapings.

Thrust assembly Stainless Steel and Carbon pad.

Quality LTB -4 Housing Bush.

Sand Proof design of mechanical seal rings and Sand Guards protection.

No suction & priming problem

Noiseless operation

High Operating Efficiency.

Applications

Industrial

Irrigation

Gardens

Agriculture

Domestic

Rural water supply

Specifications

Power :	3.0 HP to 60.0 HP
Speed :	2880 rpm
Discharge range :	5000 lpm
Head range :	Upto 160 m
Delivery Pipe Size (mm) :	50, 65, 75 & 100
